DFW10-12Cable branch box
WeChat: 0086-18668775151
Skype me: copecoelectric
Print this page Request for Quote
Lead time: Sample is available in 2-3 working days;
The regular order will be usually 20-30 working days after receipt of 30% advance payment
Quality Guarantee: We offer 18 months’ warranty period, and 20 years’ quality guarantee period
Payment Terms: T/T, L/C, Western Union or Paypal
Trade term: FOB or CIF prices
We’re professional OEM manufacturer, and also accept the customized products according to the supplied drawings or parameters
结构特点 Structural features
1、全绝缘、全密封结构，全防护、全工况；
2、进出线灵活，实际应用可达八分支进出线；
3、抗凝露、抗凝霜
4、带有半导电屏蔽层的硅橡胶电缆接头，保障人身安全 ;
5、实现小区多路送电。
6、电缆头为可触摸型。
1、full insulation, fully sealed structure, full protection, full working conditions;
2、flexible entry and exit, the actual application of the most branches and exports of eight branches;
3、anti frost, anti condensation;
4、with semi conductive shielding layer of silicone rubber cable connector, to ensure personal safety;
5、the realization of district multi-channel transmission.
6、the cable head is touch type.

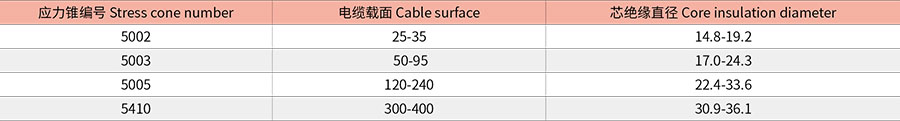

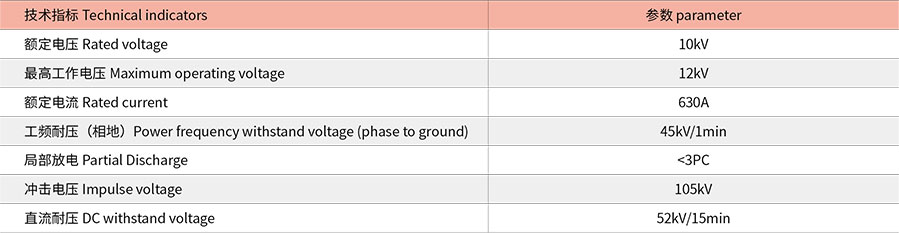

主要技术参数 The main technical parameters

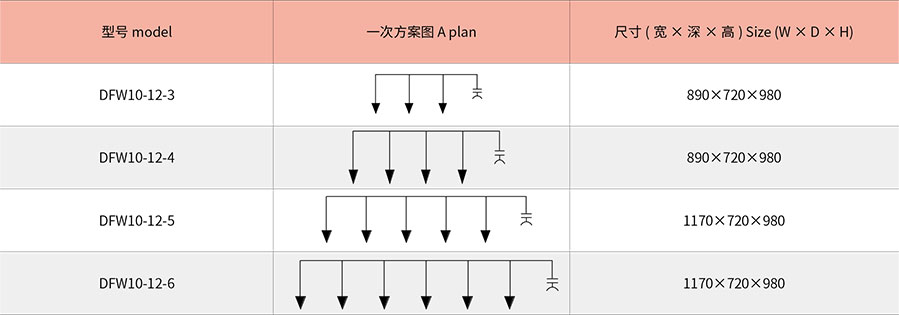

典型方案接线 Typical solution wiring

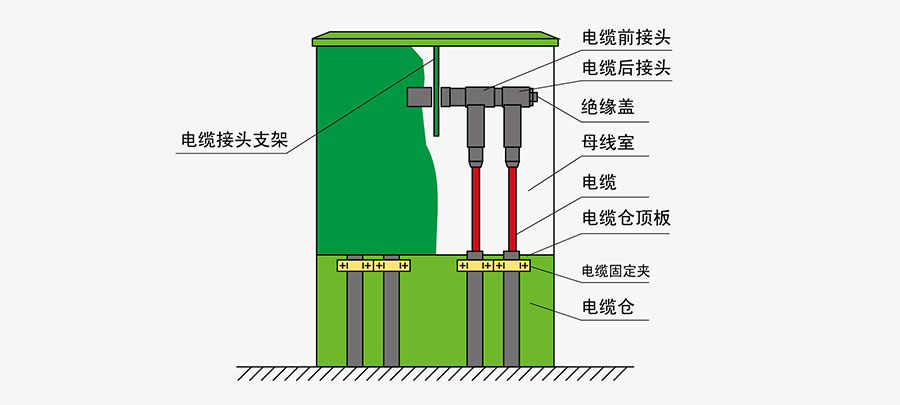

普通型四分支电缆分支箱结构示意图 Ordinary four branch cable branch box structure diagram

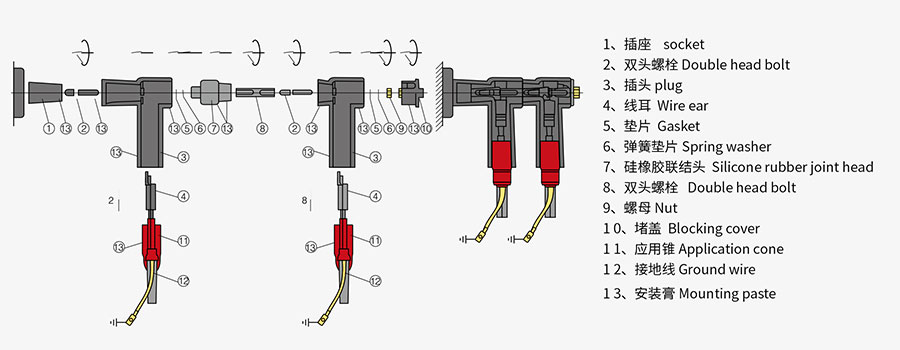

安装示意图 Installation diagram
