GN30-12(D) series Indoor high voltage disconnecting switches

WeChat: 0086-18668775151

Skype me: copecoelectric

Print this page Request for Quote

Lead time: Sample is available in 2-3 working days;
The regular order will be usually 20-30 working days after receipt of 30% advance payment

Quality Guarantee: We offer 18 months’ warranty period, and 20 years’ quality guarantee period

Payment Terms: T/T, L/C, Western Union or Paypal

Trade term: FOB or CIF prices

We’re professional OEM manufacturer, and also accept the customized products according to the supplied drawings or parameters

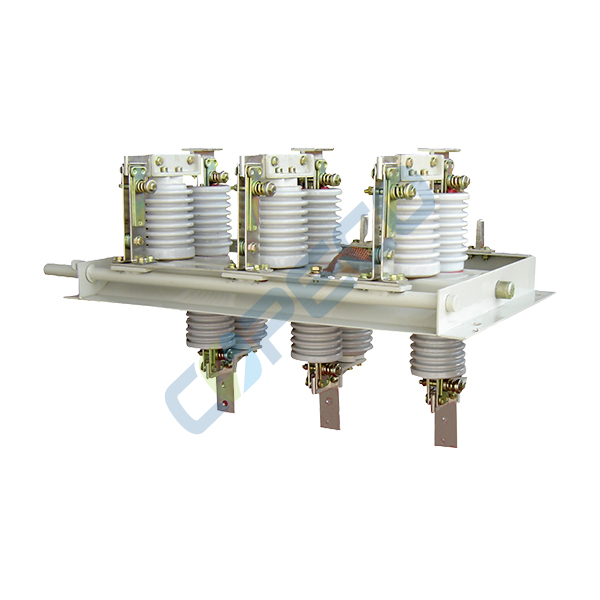

GN30-12(D) series Indoor high voltage disconnecting switches

Description

GN30-12(D) series Indoor high voltage disconnecting switches is a new type of touch rotating knife isolator , which special designed for XGN2-12 HV switchgear, with rated voltage 12kV and three phase AC 50Hz indoor device. It’s mainly used for making and breaking circuit under with voltage and no load.

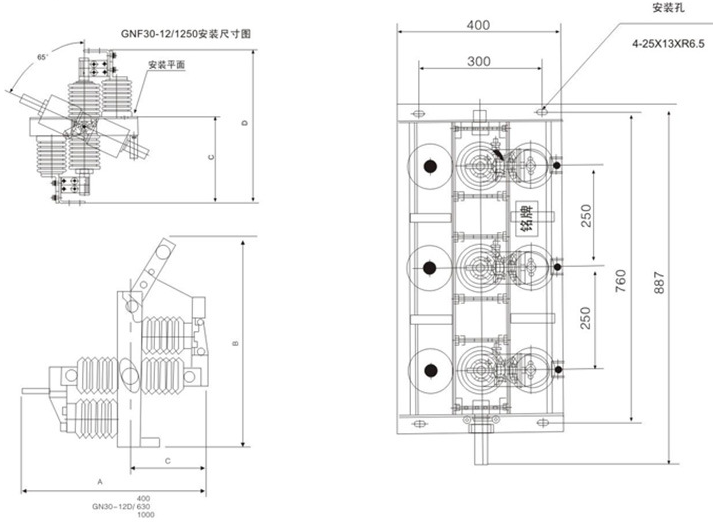

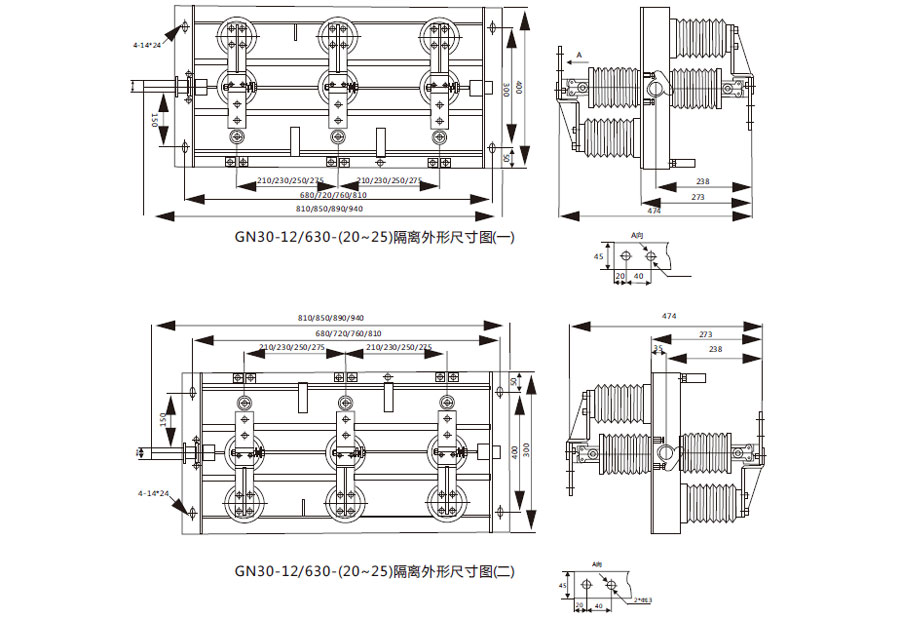

Its main structure in three-phase chassis of the upper and lower two plane, fixed two set of insulator and contact, by rotating contactor, so as to realize switching on & off.

Environment condition

- Ambient temperature: max. +40°C min. -25°C

- Altitude: ≤1000m

- Wind pressure: ≤700Pa (equals to wind speed 34m/s)

- Relative humidity: daily average ≤95%, monthly average ≤90%

- Earthquake intensity: ≤8 degree

- No corrosive, explosive or flammable gas ,no violent vibration

Technical Data

Model		GN30-12/ 400-12.5	GN30-12/ 630-20	GN30-12/ 1000-31.5	GN30-12/ 1250-31.5	GN30-12/ (1600-3150)-40
		GN30-12D/ 400-12.5	GN30-12D/ 630-20	GN30-12D/ 1000-31.5	GN30-12D/ 1250-31.5	GN30-12D/ (1600-3150)-40
Rated voltage (kV)		12
Rated current (A)		400	630	1000	1250	1600-3150
Rated short-time withstand current (kA)		12.5	20	31.5		40
Rated short-circuit duration (s)		4
Rated peak withstand current (kA)		31.5	50	80		100
Rated insulating level	1min. PF withstand voltage (kV)	phase to phase/ to earth: 42, across open contacts: 49
	Lightning impulse withstand voltage (kV)	phase to phase/ to earth: 75, across open contacts: 85
