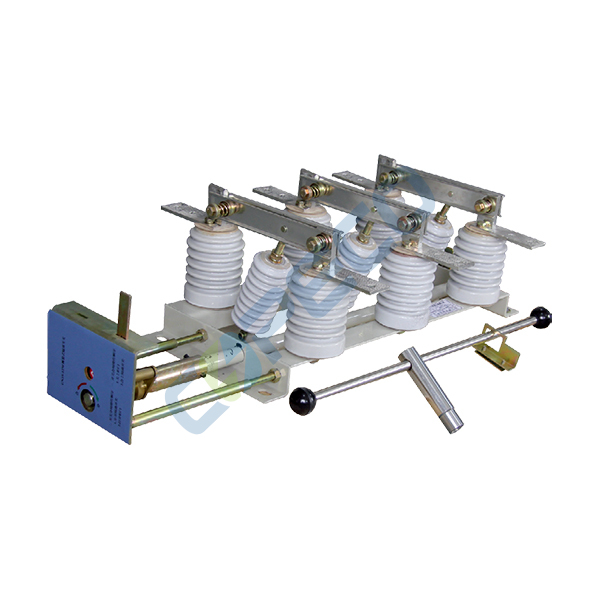

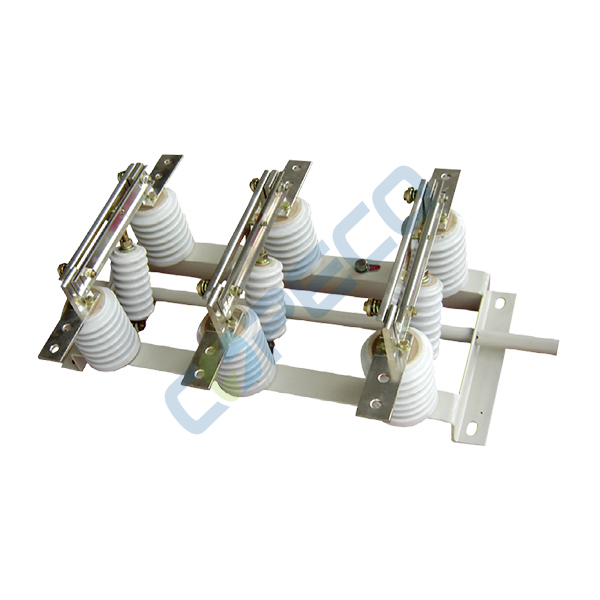

GN19-12 indoor HV disconnecting switch

WeChat: 0086-18668775151

Skype me: copecoelectric

Print this page Request for Quote

Lead time: Sample is available in 2-3 working days;
The regular order will be usually 20-30 working days after receipt of 30% advance payment

Quality Guarantee: We offer 18 months’ warranty period, and 20 years’ quality guarantee period

Payment Terms: T/T, L/C, Western Union or Paypal

Trade term: FOB or CIF prices

We’re professional OEM manufacturer, and also accept the customized products according to the supplied drawings or parameters

Description
      GN19-12 indoor  HV disconnecting switch applies to power system of rated  voltage below 12kV, AC 50/60Hz. It is equipped with CS6-1  manual-operating mechanism and is used to break and make circuit under no-load.  There are additional pollution type, high-altitude type and power indicating  type.

Environment  condition
 - Ambient temperature: max. +40°C min. -25°C
 - Altitude: ≤1000m
 - Wind pressure: ≤700Pa (equals to wind speed 34m/s)
 - Relative humidity: daily average ≤95%, monthly average ≤90%
 - Earthquake intensity: ≤8 degree
 - No corrosive, explosive or flammable gas, no violent vibration

Technical  Data

ModelRated voltage (kV)Rated current (A)4srated short time withstand current (kA)Rated peak withstand current (kA)
GN19-12/S400-12.51240012.531.5
GN19-12/S630-20126302050
GN19-12/S1000-31.512100031.580
GN19-12/S1250-31.512125031.580
GN19-12C/S400-12.51240012.531.5
GN19-12C/S630-20126302050
GN19-12C/S1000-31.512100031.580
GN19-12C/S1250-31.512125031.580

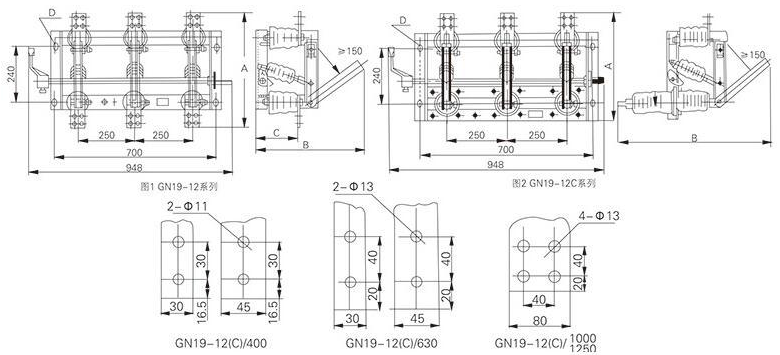

Outline & Mounting Dimensions
