Description
      ZW32-40.5/1250A type outdoor high voltage  vacuum circuit breaker is the three-phase AC 50Hz, suitable for the rated  voltage of 40.5kV outdoor high-voltage switchgear, which comply with the  national standard GB1984 "high voltage AC circuit breakers" and  professional standards JB3855 "3.6 ~ 40.5kV outdoor AC high voltage  vacuum circuit breakers" and related IEC standards. It can be used  for the control and protection of electrical equipment for industrial and  mining enterprises, power plants and substations, and  suitable for frequent operation. The circuit breaker has the ability to  break off and fast break off multiple times

Environmental conditions
 - Ambient temperature: -35℃~ +45℃;
 - Relative  humidity: monthly average 90%, daily average 95%;
 - Saturated vapor pressure: Daily average value is no  more than 2.2×10-3 MPa; Average monthly value is not more than 1.8×10-3  MPa; In high humidity temperature drop, may condensation;
 - Altitude: ≤2000m;
 - Earthquake intensity is not more than 8;
 - There is no fire, explosion, serious pollution,  chemical corrosion, and violent vibration;
 - Can be also customized as the exact request.

Technical  Data

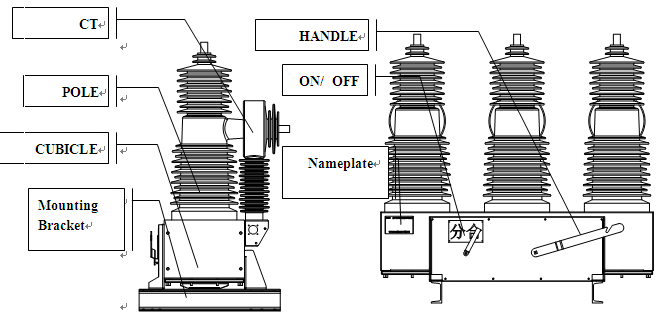

Outline  Dimension

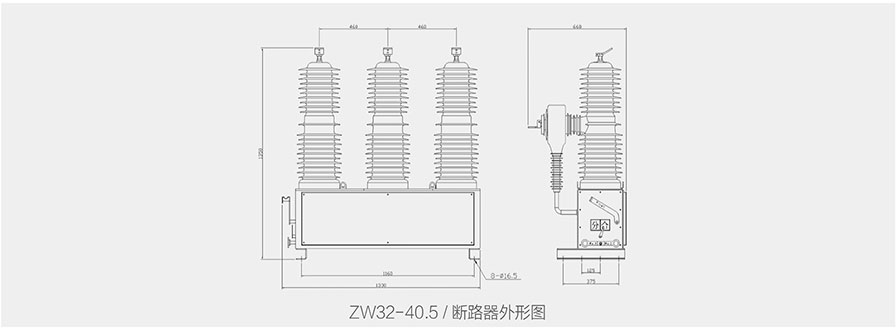

Outline & Mounting Dimensions

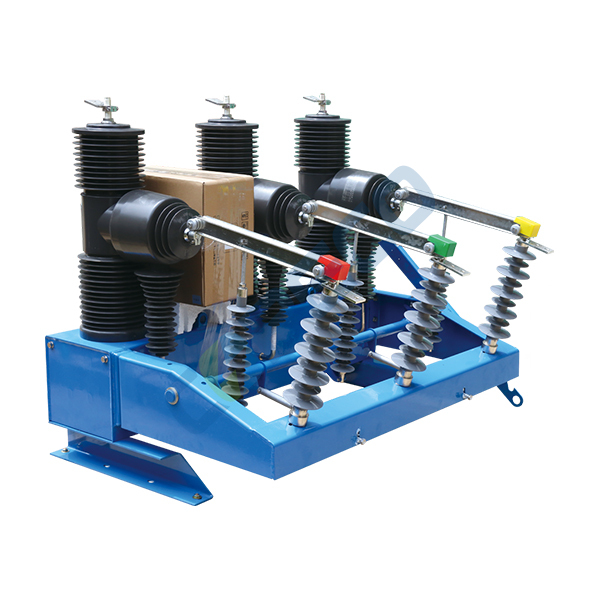

• ZW32-40.5/1250A type outdoor high voltage vacuum circuit breaker
