GW1-12G(D) series outdoor high-voltage isolating switch

WeChat: 0086-18668775151

Skype me: copecoelectric

Print this page Request for Quote

Lead time: Sample is available in 2-3 working days;
The regular order will be usually 20-30 working days after receipt of 30% advance payment

Quality Guarantee: We offer 18 months’ warranty period, and 20 years’ quality guarantee period

Payment Terms: T/T, L/C, Western Union or Paypal

Trade term: FOB or CIF prices

We’re professional OEM manufacturer, and also accept the customized products according to the supplied drawings or parameters

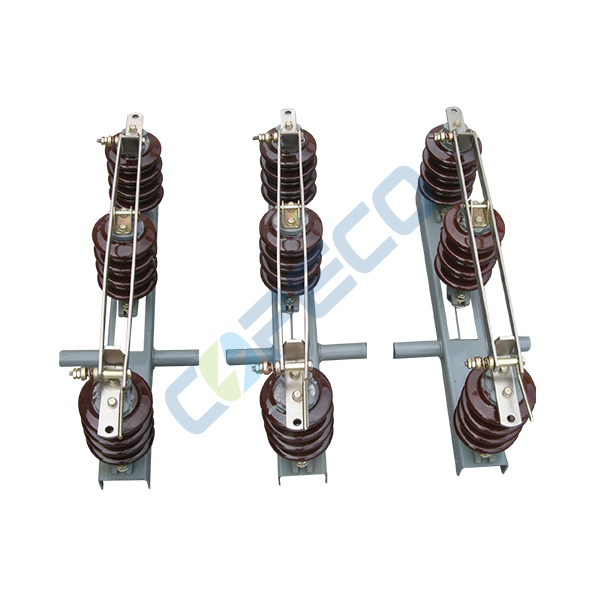

GW1-12G(D) series outdoor high-voltage isolating switch

Description
GW1-12G(D) series outdoor high-voltage isolating switch, which is a high-voltage switchgear with single-pole structure. It can be used for circuit and circuit in the outdoor 12KV line network with voltage and no load.
Switch with grounding knife, with CS port type manual mechanism, can prevent the grounding wire and the grounding wire from being "closed" Waiting for the wrong operation, the operator does not have to hang the ground wire.
The anti-fouling outdoor high-voltage isolating switch can meet the requirements of users in severely polluted areas, and can effectively solve the problem of pollution flashing that occurs in the operation of the isolating switch.

Environment condition
- Ambient temperature: max +40°C min -30°C
- Altitude: ≤1000m
- Air contamination degree: IV degree

- Earthquake intensity: ≤8 degree
- No corrosive or flammable gas

Technical Data

1	Rated voltage	kV	10/15
2	Maximum work voltage	kV	12/20
3	Rated frequency	HZ	50
5	Rated current	A	200/400/630/1250
6	4s short time withstand current	kA	6.3/12.5/20/31.5
7	Rated peak withstand current	kA	16/31.5/50/80
8	accessories frame		CS8-1,CS8-D,CS8-5 manual actuator form, CJ61 motor actuator form
4	mechanical endurance	Times	10000
