ZN-85-40.5 handcart

WeChat: 0086-18668775151

Skype me: copecoelectric

Print this page Request for Quote

Lead time: Sample is available in 2-3 working days;
The regular order will be usually 20-30 working days after receipt of 30% advance payment

Quality Guarantee: We offer 18 months’ warranty period, and 20 years’ quality guarantee period

Payment Terms: T/T, L/C, Western Union or Paypal

Trade term: FOB or CIF prices

We’re professional OEM manufacturer, and also accept the customized products according to the supplied drawings or parameters

Description

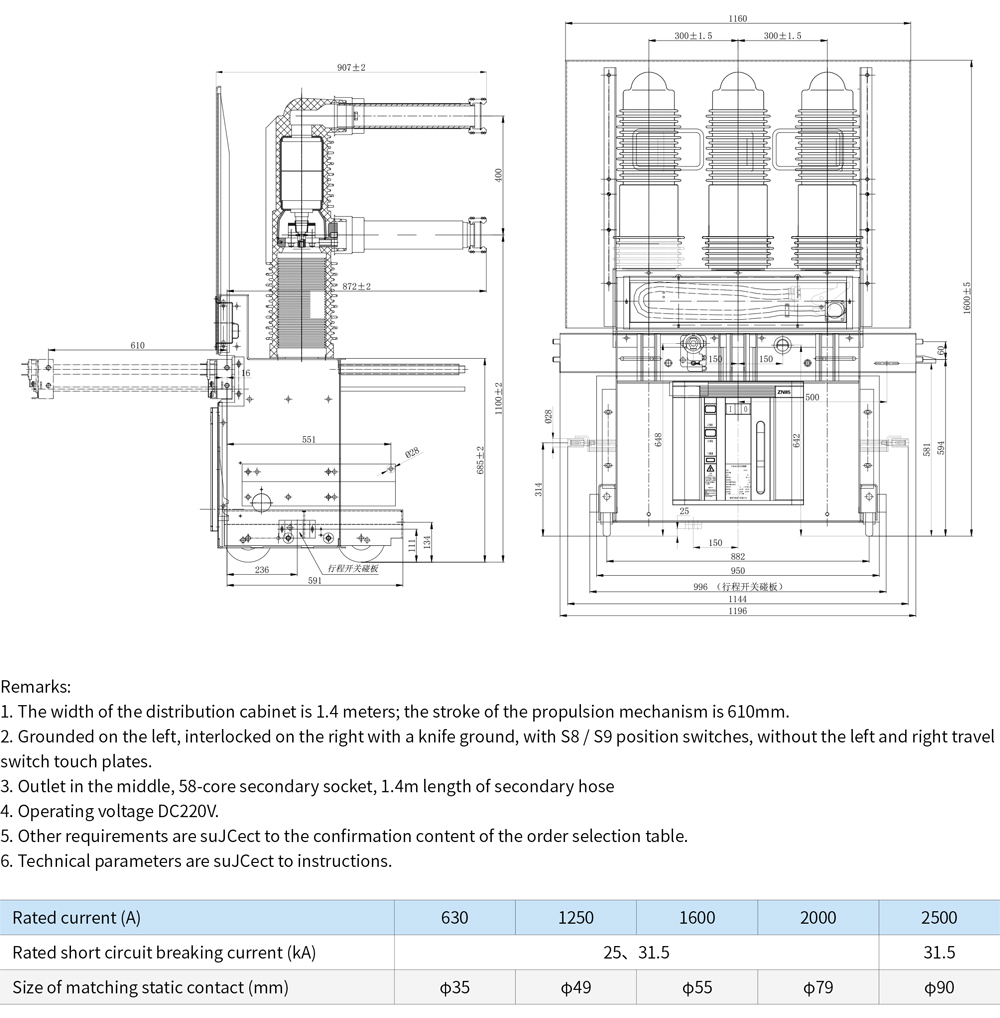

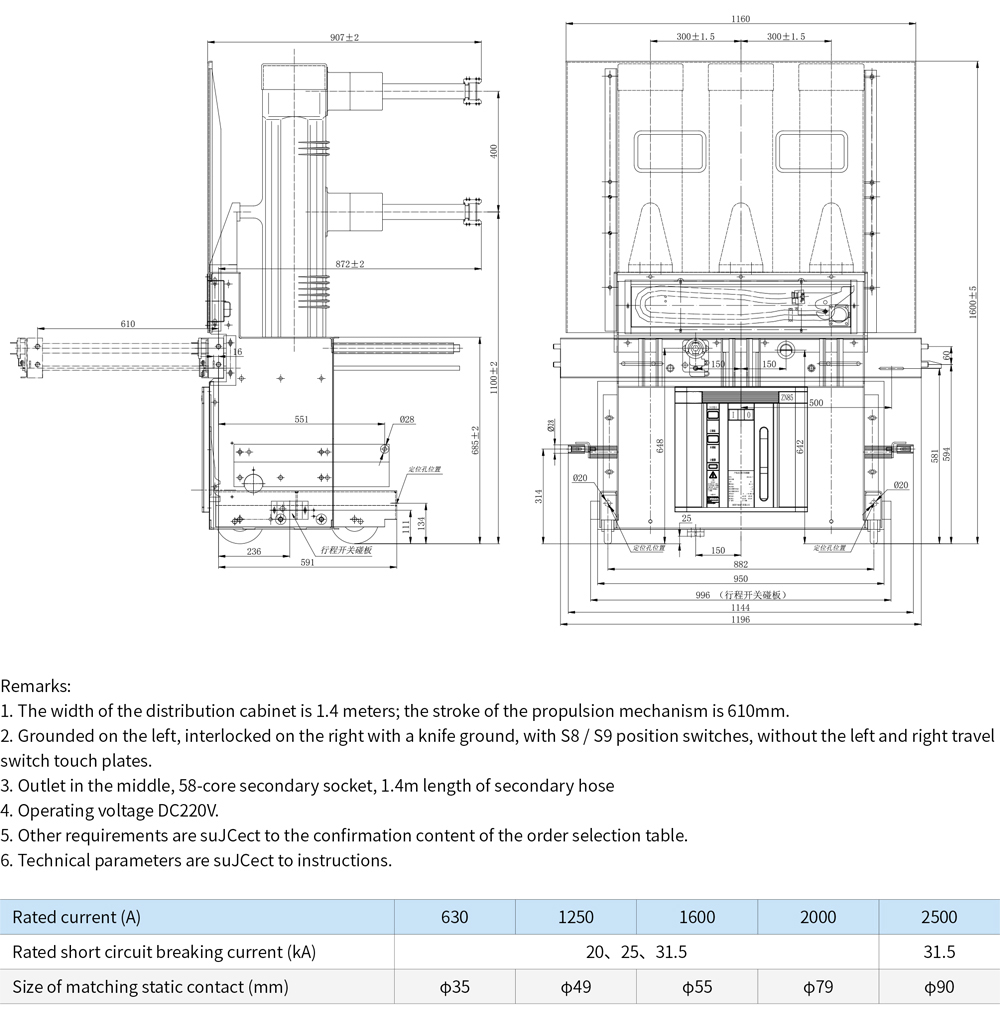

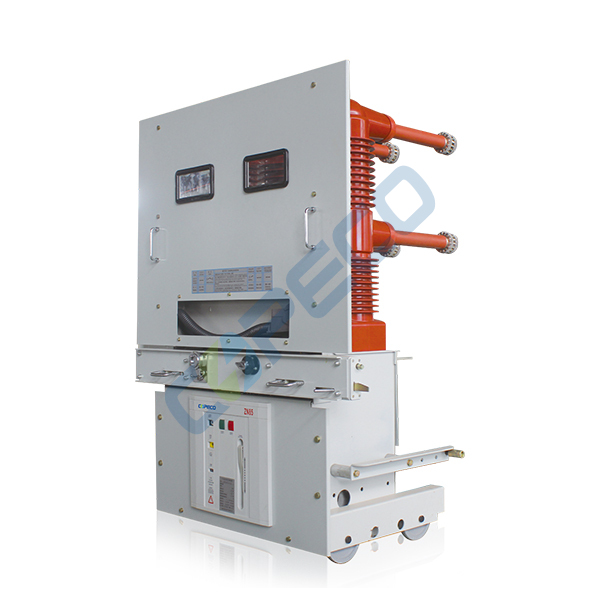

ZN-85-40.5 handcart (Draw out) type with Modular mechanism indoor vacuum circuit breaker is suitable for indoor high voltage switchgear with rated voltage of 40.5kV and three-phase AC 50Hz. It can be used as industrial and mining enterprises, power plants and substations as load current, overload current and short circuit. For current use, it is suitable for frequent operation.
This VCB and operating mechanism used on the layout structure , effectively reduce the depth, mechanism design of circuit breakers is simple, the output curve and the performance is more suitable for the characteristics and requirements of 40.5KV vacuum circuit breaker.

Environment Condition:
- Ambient temperature:-25℃~+40℃
- Altitude: ≤2000m
- Daily average relative humidity: ≤ 95%
- Monthly average relative humidity: ≤90%
- Earthquake intensity: ≤8 degree
- No fire, explosion hazard, severe vibration, chemical corrosion and serious pollution

Technical Data

1	Rated voltage		kV	40.5
2	Rated current		A	1250		1600	2000, 2500
3	Rated short-circuit breaking current		kA	25	31.5	25	31.5
4	Rated withstand current (peak)		kA	63	80	63	80
5	4s rated short time withstand current		kA	25	31.5	25	31.5
6	Rated short circuit making current (peak)		kA	63	80	63	80
7	Rated short-circuit current breaking times		Time	20
8	Rated operating sequence			0-03s-Co-180s-Co
9	Rated insulation level	1min power frequency withstand voltage	kV	95
		Lightning impulse withstand voltage (peak)		185
10	Mechanical life		Time	10000
11	Contact opening distance		mm	20±2
12	Contact Over-travel (Length of spring compression)		mm	7.5±1.5
13	Three phase contact closing opening asynchrony		ms	≤2
14	Contact closing bounce time		ms	≤3
15	Main circuit resistance( excluding contact arm)		μΩ	≤40
16	Single capacitor bank breaking current		A	630
17	Back-to-back capacitor bank breaking current		A	400
18	Rated voltage electrical energy storage		V	AC,DC 110 220
