概述   Outline

JP 系列户外综合配电箱，是集计量、出线、无功补偿等多功能于一体达到户外综合配电装置，具有短路、过载、过电压、漏电保护等功能，体积小、外型美观、经济实用，安装于户外柱上变压器的电杆上，是城乡电网改造的配电产品。

JP series outdoor integrated power distribution box is a comprehensive power distribution device with the functions of metering, outgoing and reactive power compensation. It has the functions of short circuit, overload, over-voltage, leakage protection and so on,The utility model has the advantages of beautiful appearance, economy and practicability, and is installed on the pole of an outdoor column and transformer, and is a new generation of ideal distribution product for urban and rural power grid transformation.

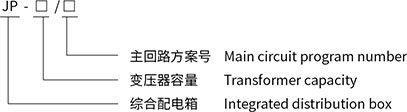

型号及含义   Model and meaning

使用环境条件   Use environmental conditions

1、环境温度：-25℃ +40℃；

2、空气相对湿度：日平均值不大于 90%, 月平均值不大于 90%；

3、海拔高度：不大于 2000m;

4、安装在无剧烈震动和冲击、无腐蚀性气体的场所。

1, environmental temperature: -25 degrees, +40 degrees;

2, air relative humidity: daily average value is not greater than 90%, the average monthly value is not greater than 90%;

3, elevation: no more than 2000m;

4, installed in the absence of severe shock and shock, non corrosive gas sites.

结构特点    Structural features

箱体结构分立式和卧式，外壳采用 2mm 优良不锈钢板经多重折边工艺弯制 ( 或采用蜂窝结构的不锈钢双夹层复合板，具有阻燃、环保、隔热、防凝露等性能 )，采用不锈钢焊接工艺，箱体成型后整体强度高，表面光洁如镜，不留焊缝痕迹；内部安装梁 ( 板 ) 为热镀锌工艺处理；箱体前后开门，便于用户操作和检修，门四周镶有高弹力耐老化密封胶条，每扇门均装有明暗两种门锁，明锁配有防堵防锈的遮雨罩；计量室全封闭带铅封装置；箱体侧面装有防雨防异物的进线电缆穿管，底部冲有通风孔和电缆出线孔，顶部设有通风道和丝网，具有防水、防锈、防尘、防异物的功能，防护等级：IP54。

The structure of the case is discrete and horizontal. The shell is made of 2mm high quality stainless steel plate and bent by multiple folding process (or stainless steel double sandwich plate with honeycomb structure). It has flame retardance, environmental protection, heat insulation and anti condensationPerformance) adopt special stainless steel welding technology, the whole strength of the box is high, the surface is bright and clean, such as the mirror, without leaving the trace of welding seam; the internal installation of beam (plate) is hot-dip galvanized process, to ensure that twenty years without corrosion;The front and back door of the box body is convenient for the user to operate and examine and repair. The door is surrounded by a high elasticity aging resistant sealing strip, and each door is provided with two door locks of light and shade, and the transparent lock is provided with an anti blocking and rust proof rainproof cover; the measuring chamber is fully enclosedClosed with a sealing device; the side of the box is equipped with cable lines into the proof of foreign body wear tube, bottom ventilation holes and the cable outlet hole is arranged on the top of a ventilation channel and screen, waterproof, dustproof, anti rust, anti foreign bodyFunction, protection level: IP54.

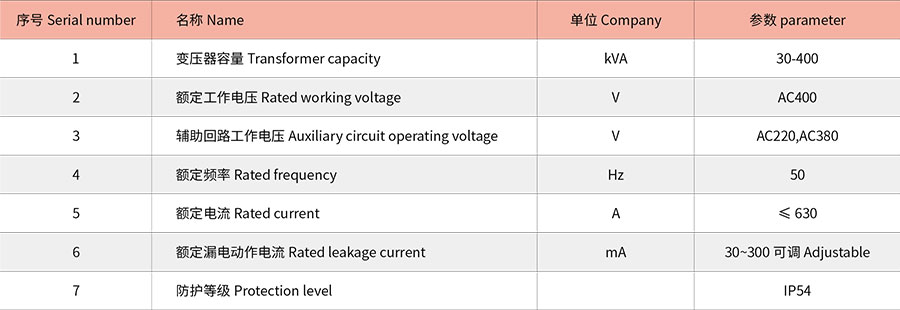

主要技术参数    The main technical parameters

补偿回路数 1-4 回可选，每回容量 3 〜 20kvar 可选，

Compensation circuit number 1-4 back optional, each capacity is 3~20Kvar optional;

另：根据用户需求，箱内可选装温湿度控制装置。

Another: According to user needs, optional temperature and humidity control device

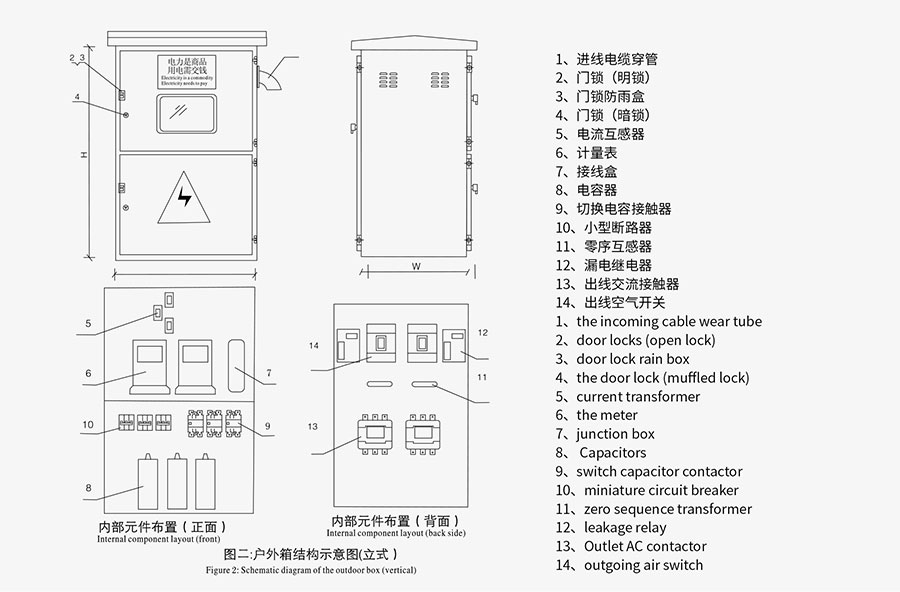

主要技术参数   Box structure diagram

箱体外形尺寸   Body size

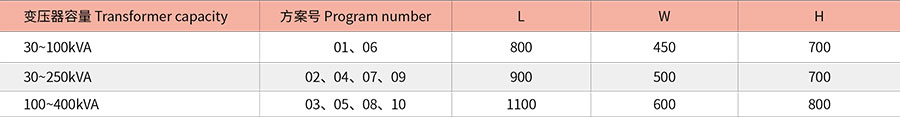

卧式箱体外形尺寸   Overall dimension of bedroom cabinet

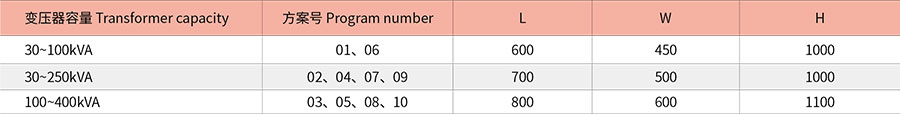

立式箱体外形尺寸  Shape dimension of vertical box

* 以上尺寸仅供参考  * above dimensions are for reference only

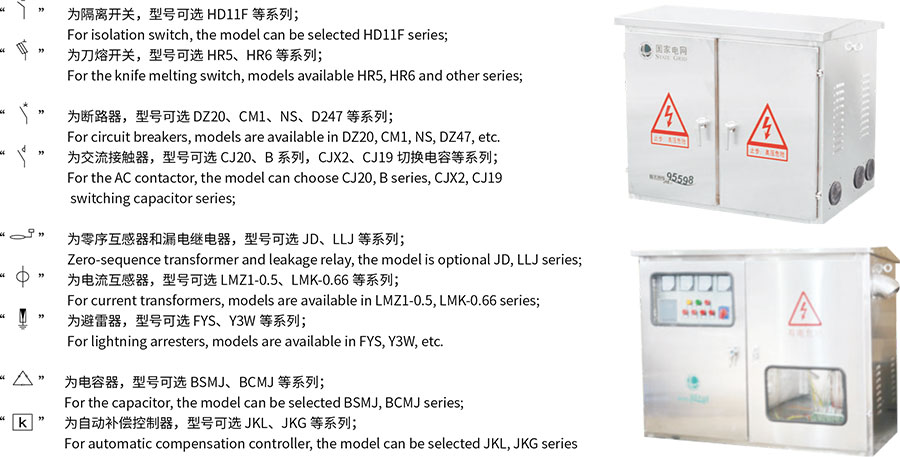

• JP Integrated distribution box (compensation\control\terminal\lighting)
