Description

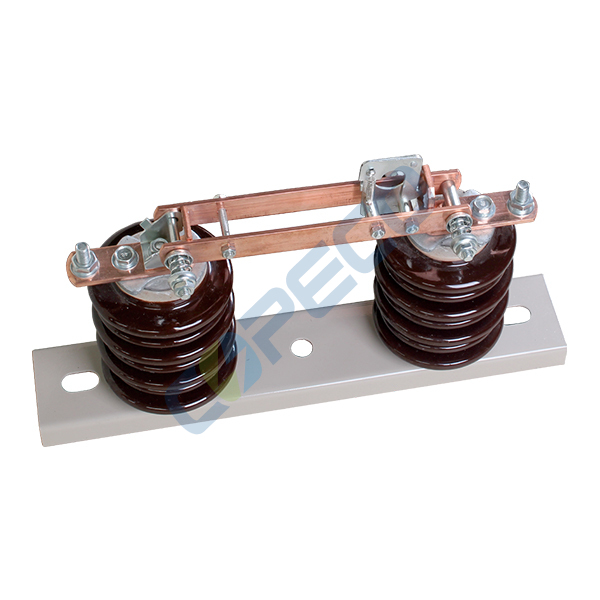

       GW9 -12 series Outdoor high voltage Disconnecting switch, also called Knife switch, is applied to rated voltage 12kV of  3phase AC 50HZ outdoor power system. Under the no load conditions it can switch on and off circuit to ensure when circuit maintenance it has obvious cut-off point.

       The isolating switch is the vertical open design of double knife switch. The contact uses the way of crimping of double pull-out piece spring. It assures the stability of switch electrical contact and the reliability of switching.

       The  switch consists of base, post insulator conducting parts, insurance hook and  etc. Each phase has a knife switch, and insulation  hook rod can be used to open and close divide-shut brake. The knife switch  itself has a self-locking unit. The product conforms to IEC129,  IEC694,GB1985-89.

Environment  condition
 - Ambient temperature: max +40°C min -25°C
 - Altitude: ≤1000m
 - Wind pressure: ≤700Pa (equals to wind speed 34m/s)
 - Air contamination degree: Ⅲ  degree

- Earthquake intensity: ≤8 degree
 - No corrosive or flammable gas, no frequent violent vibration

Technical  Data

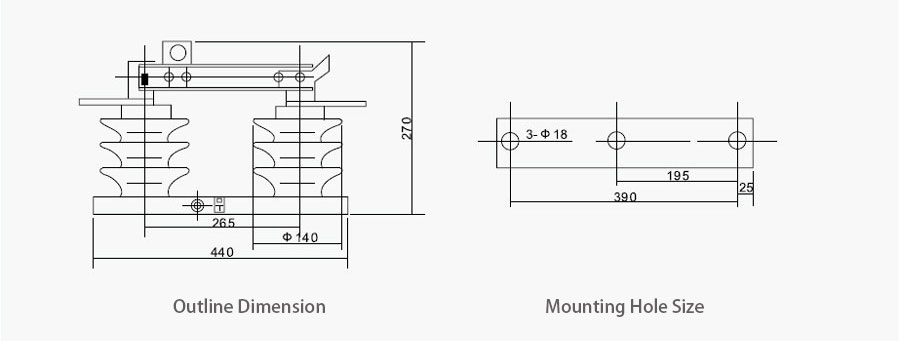

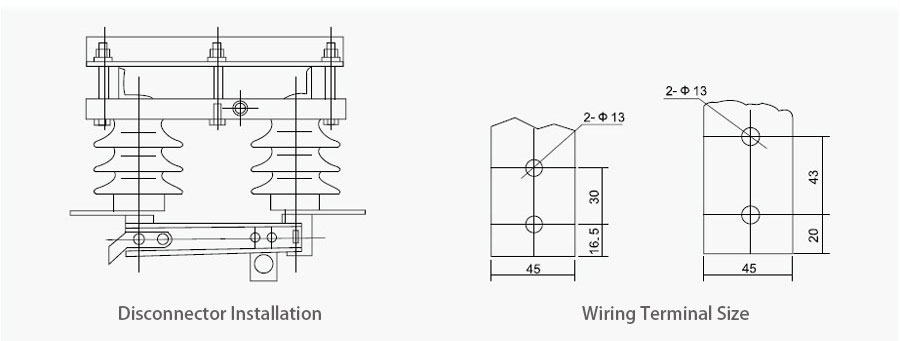

Outline & Mounting Dimensions

• GW9-12 series Outdoor high voltage Disconnecting
